Faction 2
Dirt, pump, dirt
Znovu vzkříšený dirt bike. Zde není potřeba cokoliv dodat.
Máte nějaké otázky nebo potřebujete poradit?
Neváhejte a kontaktujte nás telefonem, e-mailem nebo přes sociální sítě.
Telefon
01
STEEL IS REAL
The Faction 2 frame is is constructed out of Reynolds 520 steel tubing to provide strength and durability.
02
TAPERED HEAD TUBE
A new taller tapered head tube to fit modern dirtjump forks and give you that boost you were looking for.
03
BMX-STYLE HORIZONTAL DROPOUTS
BMX style horizontal dropouts and mid BB bottom bracket.
FRAME GEO |
SMALL |
MEDIUM |
LARGE |
|---|---|---|---|
A – Head Angle |
69.5° |
69.5° |
69.5° |
B – Seat Tube Angle |
71.5° |
71.5° |
71.5° |
C – Virtual Top Tube Length |
580mm | 22.8″ |
590mm | 23.2″ |
605mm | 23.8″ |
D – Seat Tube Length |
320mm | 12.6″ |
320mm | 12.6″ |
320mm | 12.6″ |
E – Bottom Bracket Height |
323mm | 12.7″ |
323mm | 12.7″ |
323mm | 12.7″ |
F – Head Tube Length |
115mm | 4.5″ |
115mm | 4.5″ |
115mm | 4.5″ |
G – Chain Stay Length Min |
381mm | 15.0″ |
381mm | 15.0″ |
381mm | 15.0″ |
G – Chain Stay Length Max |
397mm | 15.6″ |
397mm | 15.6″ |
397mm | 15.6″ |
H – Wheel Base Min |
1016mm | 40.0″ |
1026mm | 40.4″ |
1041mm | 41.0″ |
H – Wheel Base Max |
1032mm | 40.6″ |
1042mm | 41.0″ |
1057mm | 41.6″ |
J – Axle to Crown |
482mm |
482mm |
482mm |
K – Offset |
40mm |
40mm |
40mm |
Stack |
521mm | 20.5″ |
521mm | 20.5″ |
521mm | 20.5″ |
Reach |
389mm | 15.3″ |
399mm | 15.7″ |
414mm | 16.3″ |
Sizing |
5’0″-5’7″ |
5’7″-6’1″ |
6’1″-6’4″ |
COMPONENT SIZING |
SMALL |
MEDIUM |
LARGE |
|---|---|---|---|
Stem Length |
35-50mm |
35-50mm |
35-50mm |
Stem Rise |
0°-5° |
0°-5° |
0°-5° |
Handlebar Rise |
35mm-50mm |
35mm-50mm |
35mm-50mm |
Handlebar Width |
710mm-800mm |
710mm-800mm |
710mm-800mm |
Crank Length |
170mm |
170mm |
170mm |
Sizing |
5’0″-5’7″ |
5’7″-6’1″ |
6’1″-6’4″ |
| Available Sizes | Small, Medium, Large |
| Frame | Reynolds 520 Steel in Black Rust |
| Fork Axle to Crown Length | 482mm |
| Fork Offset | 40mm |
| Head Tube | Tapered 1 1/8″ – 1 1/2″ |
| Headset | FSA NO.42/ACB, Upper 42mm, Lower 52mm |
| Seatpost Diameter | 27.2mm |
| Rear Wheel Diameter | 26″ |
| Maximum Rear Tire Size | 26″ x 2.3″ (Varies by Brand) |
| Bottom Bracket Shell | Mid BB |
| Chainline | 50mm |
| Chainguide Mount | N/A |
| Maximum Chainring Size | 28T Single Ring |
| Rear Wheel Spacing | 135mm x 10mm |
| Brake Mount Type | IS Standard |
| Maximum Rear Rotor Size | 160mm |
WHAT SIZE SPINDLE DOES THE FACTION USE WHEN RUNNING BMX STYLE CRANKS?
The Faction works best with 153mm/6″spindles.
WHAT SIZE IS THE SEAT POST?
The Faction 2 uses a 27.2mm seat post and has an integrated seat clamp.
WHAT IS THE WARRANTY ON THE FACTION 2?
3 Year limited warranty
WHAT TYPE OF HEADSET DOES THE FACTION 2 USE?
The Faction uses a FSA NO.42/ACB, Upper 42mm, Lower 52mm headset.
Podívejte se na další kola v nabídce
CHAMOIS HAGAR
700 X 50C
GRAVEL (ŠTĚRK)
FOLLOWING
29″ KOLA
120 MM ZADNÍ ZDVIH
OFFERING
29″ KOLA
140 MM ZADNÍ ZDVIH
WRECKONING
29″ KOLA
166 MM ZADNÍ ZDVIH

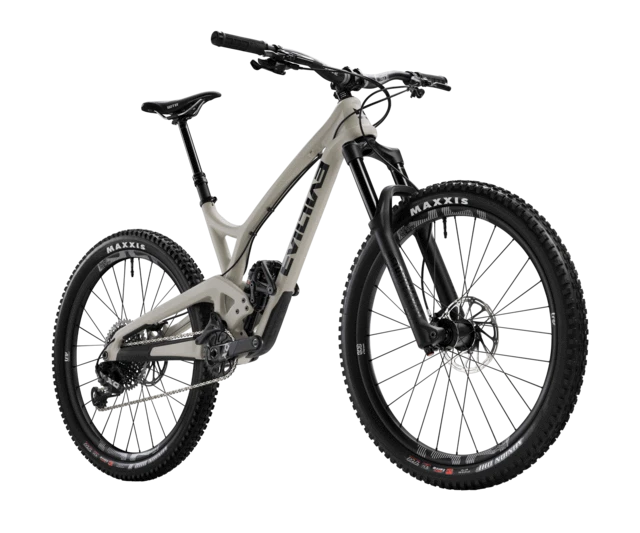

INSURGENT
